Wire mesh fence high quality welded wire fence garden wire fencing

FOB Reference Price:Get Latest Price
$47.00 - $90.00 / Sets | 400 Set/Sets (Min. Order)
75X150mm 80X120mm
Report Suspicious Activity
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Model Number:
HHY-wire fence
Low-Carbon Iron Wire, Low-Carbon Iron Wire
Welded Mesh
Fence Mesh
Hole Shape:
oblong shape
Wire Gauge:
as following
can be required
The colour:
RAL6005 or others can be required
Supply Ability
Supply Ability:
1000 Set/Sets per Week 1
Packaging & Delivery
Packaging Details
Export packing or according to clients's requirements.
Video Description
Product Description1

welded wire mesh fence export to Japan wire mesh fence factory offer wire fence

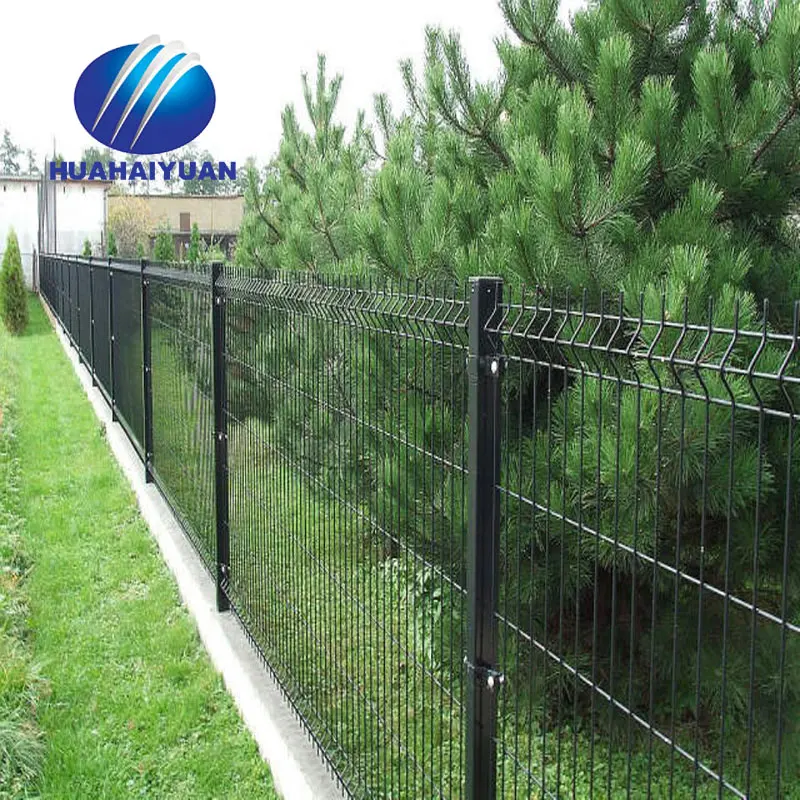

1.The HuaHaiYuan Wire Mesh fence is a complete high quality fencing, which guarantees an extra long life at a low cost.
Cost Effective
The welded mesh panels provide competitive price levels whilst retaining high quality, rigidity and performance.
Long Life
Galvanized and PVC coated of corrosion resistance for long life and low maintenance and attractive appearance.
High Strength
The panels are welded from strong steel wire, with rectangular mesh and horizontal reinforcements that give the panels a high strength.
Rapid Installation
All components attractive fence with the other components which achieves professional and high quality fencing, installed with maximum effectiveness.
Specification Of Welded Panels:
The welded mesh panels are available in a range of heights from 1030 to 2500mm and have a width of 3000mm.
The wire diameter is usually from 4mm to 5mm, which welded at each intersection. The panels have vertical barbs of 20mm-30mm at the top.
The mesh patterns are 100X50mm, or 150X70mm.
Specifications can be customized.
The panels are secured laterally on the posts with specialized fixing made out of metal (security clips). The tubular posts (50X70mm, or 70X100mm) in H-shape are covered with a plastic cap.
Specifications can be customized.
3.Coating Techniques & Colors
The panels are galvanized before PVC-coating adhesion to the product surface in accordance with the GB/T18226-2000 standard.
The Colors of PVC coatings usually are RAL6005 and RAL9003. Other colors can be requested.

The welded mesh fencing can be used for gardens, factory, road , highway, public buildings , parks, government buildings, ball court, industry & commercial sector.

wire diameter
mesh size
high for mesh fence
wide for fence panel
4.0mm 4.2mm
4.5mm 5.0mm
50*100mm  75*150mm
80*160mm 50*200mm
1.2m 1.5m 1.8m 2.0m
Detailed Images2

wire mesh fence welded wire fence  galvanized welded fence

huahaiyuan factory produce wire fence and export to Japan , we can produce fence as your request , if you have any question ,contact with us please.

Packing & Delivery3
Our Company4

Huahaiyuan History
1. In 1987, Mr. Wang's father lead 5 villagers begin to weave the wire mesh. At that time, old machine mostly is supported by people, speed is very slow.
2. In 1995, Mr. Wang's older brother began to use advanced machine RGK with his father, auto control warp wire feeding, high efficiency. The factory started to work for the crimped mesh.
3. In 1998, Mr. Wang graduated from college. Mr. Wang break weaving machine traditional, bought welding machine, began to welding mesh.
4. In 2000, Mr. Wang began to make the wire mesh fence for the railway station.
5. In 2005, Mr. Wang's Younger bother graduated, and began to make the razor wire.
6. In 2008, three brothers registered Anping Huahaiyuan Wire Mesh Co.LTD, and the enterprise began to export to world.
Our products have been exported to Europe, the U.S.A., the Middle East, Southeast Asia, Africa and some other parts in the world. While we pay much attention to continued effort in better quality products, We has been passed by the standard of ISO9001:2000 Quality Management System Certification.
We can supply various Wire Mesh Fence, Chain Link Fence, Temporary Fence, Razor Bared Wire, Hesco Barrier,Welded Roll Fence,358 Fence,Gabion Box,Rockfall Netting,Stainless Steel Wire Mesh, Barbecue Grill Wire Mesh, Welded Wire Mesh, Crimped Wire Mesh,,Vibration Screen Mesh,Mine Screening Mesh, Galvanized Wire.

Our Certifications5

1. Q: Are you a factory or trading company?
A: We are a factory.

2. Q: What certificate do you have?
A: We have ISO and CE certificate.
3. Q: How does your factory do regarding quality control?
A: We have a special QC department in charge of products' quality.
4. Q: How long is the warranty period?
A: All of our products have one year warranty.
5. Q: What's the main market of your company?
A: We have customers all over the world.
6. Q: How much production capacity of your company one year?
A: This depends on your needs.
7. Q: Where is your factory located? How can we visit there?
A: Our factory is located in Anping county,Hengshui City, Hebei, China,
Near Shijiazhuang Airport and Beijing Airport. We offer transportation service.

contact with us please

Amy  Huo
